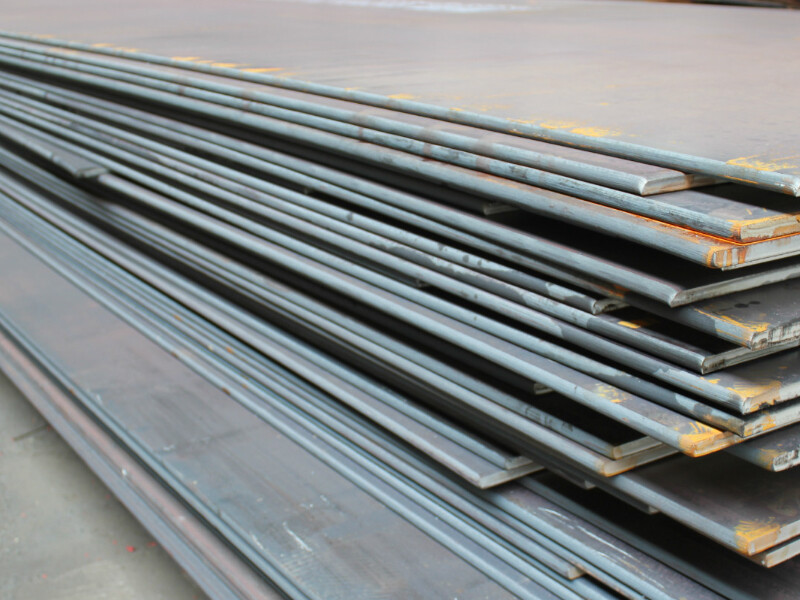

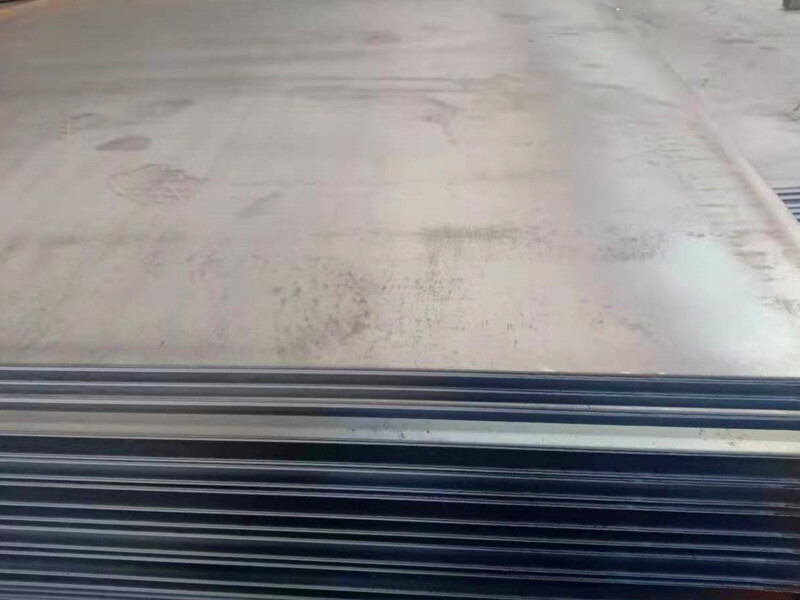

DD11、SPHC、SAE1008 Carbon Steel Plate/Sheet

Contact Info

8618762660839

+86-18762660839

Swendy@honor-industries.com

Address : 118 Beihuan Road, Xishan District, Wuxi, China

WhatsApp US

Get Best Quote



Parameter

Chemical Composition

Mechanical Properties

Product Name	Carbon Steel Plate/Sheet
Length	as required
Width	3mm-2000mm or as required
Thickness	0.1mm-100mm or as required
Standard	AISI、ASTM、DIN、JIS、GB、SUS、ENetc
Technique	Cold rolled /Hot rolled
Surface Treatment	2B or according to customer requirement
Thickness tolerance	+0.01mm
Material	Q195A-Q235A/DD11/SPHC/AE1008/SPCC/SPCD/SPCE/ST12-15/DC01-06
Application	These materials are applied in various manufacturing industries.
	In the automotive manufacturing field, they are used for non-critical structural components, mechanical parts, vehicle body structural components, and automotive parts with different stamping requirements, such as shells, inner door panels, and complex deep-drawn parts like fuel tanks.
	In the aspects of home appliances and daily necessities, they are applied to the shells of refrigerators and air conditioners, the cavities of microwave ovens, the packaging of food cans, hardware products, architectural decorative panels and door and window frames, general mechanical parts, and industrial equipment.
	In the construction and other industries, they are used for building support components, light steel keels, the casings of precision instruments, and the casings of electronic products.
MOQ	1 ton ,We can accept sample order.

Grade	C	Si	Mn	P	S	Als	Ni	Cr	Cu
DD11	≤0.10	≤0.05	≤0.60	≤0.035	≤0.035	≥0.010	≤0.15	≤0.15	≤0.20
SPHC	≤0.12	≤0.05	≤0.50	≤0.035	≤0.035	≥0.010	-	-	-
SAE1008	≤0.10	-	0.30 - 0.50	≤0.040	≤0.050	-	-

Steel Grade	Property	Value
DD11	Tensile Strength (Rm)	≤440 MPa
DD11	Yield Strength (Reh)	170 - 360 MPa (Nominal thickness 1 - 2 mm)
DD11	Elongation at Fracture (A)	22 - 28% (Nominal thickness 3 - 11 mm)
SPHC	Tensile Strength	270 - 430 MPa
SPHC	Yield Strength	185 - 265 MPa
SPHC	Elongation	26 - 34% (Thickness less than 3 mm)
SAE1008	Brinell Hardness	93 - 100
SAE1008	Elastic (Young's, Tensile) Modulus	190 GPa (27 x 10⁶ psi)
SAE1008	Elongation at Break	22 - 33%
SAE1008	Fatigue Strength	150 - 220 MPa (21 - 32 x 10³ psi)
SAE1008	Poisson's Ratio	0.29
SAE1008	Reduction in Area	50 - 63%
SAE1008	Shear Modulus	73 GPa (11 x 10⁶ psi)
SAE1008	Shear Strength	220 - 230 MPa (31 - 34 x 10³ psi)
SAE1008	Tensile Strength: Ultimate (UTS)	330 - 370 MPa (47 - 54 x 10³ psi)
SAE1008	Tensile Strength: Yield (Proof)	190 - 310 MPa (27 - 45 x 10³ psi)

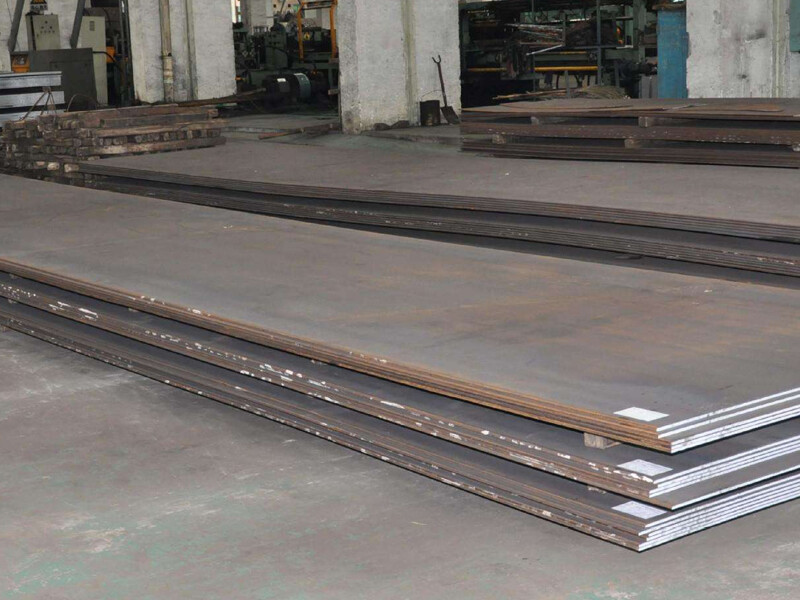

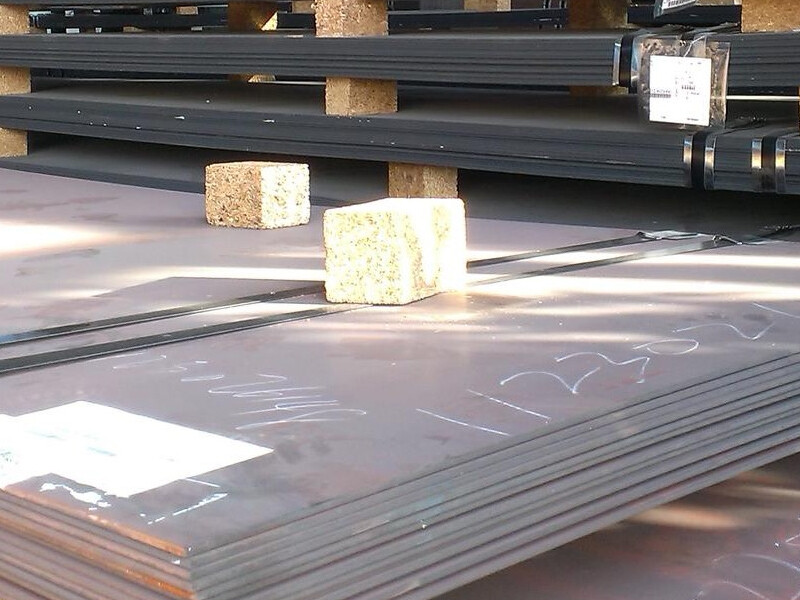

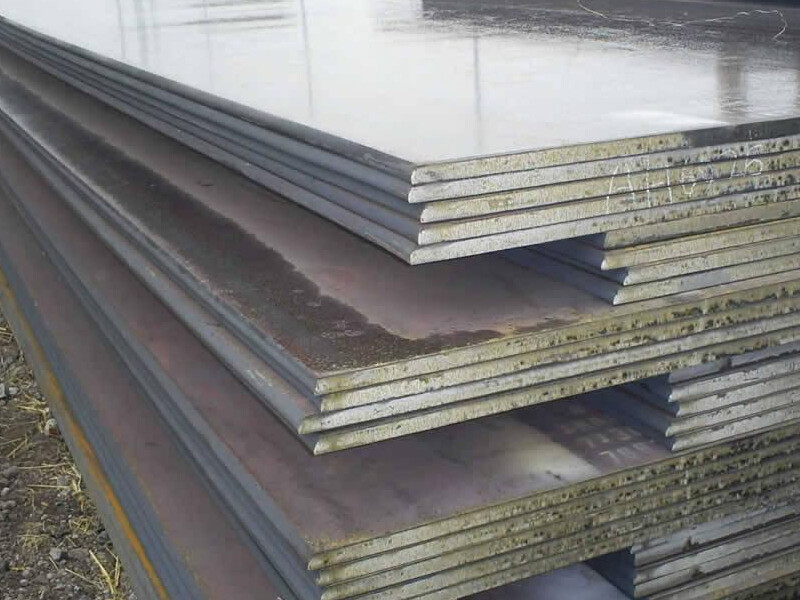

PRODUCT SHOOTING

OUALITY INSPECTION

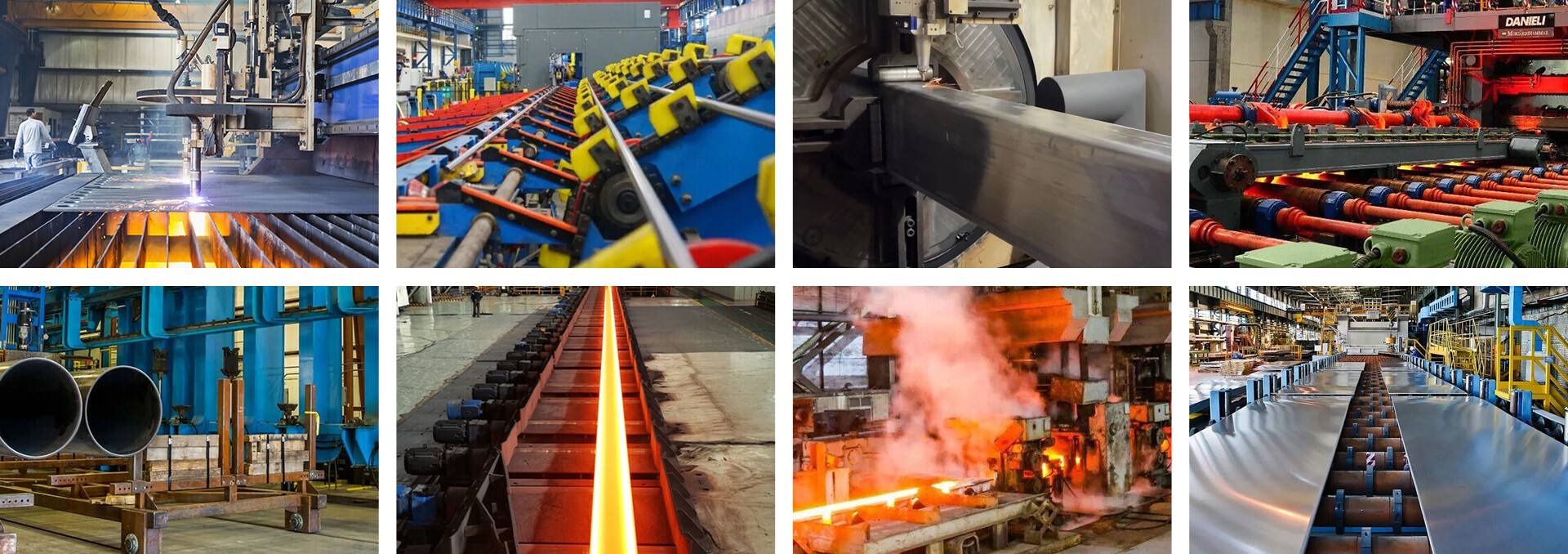

WORKSHOP PACKAGING

Packaging and loading:

Packaging: According to customers' needs, use wrapping paper. If the transportation period exceeds 10 days or encounters special climate, we will use waterproof packaging and add plastic film to prevent moisture, water and rust.

Loading: We use the wooden pallet,triangular wood to fix the coil,and the steel wire rope to hold on the both side. That can prevent from the crush injury effectively.
