High-Precision Cold-Drawn Steel Tube/Pipe-HONOR INDUSTRIES CO., LTD

Carbon Steel Tube/Pipe



Location: Home > Products > Carbon Steel > Carbon Steel Tube/Pipe > High-Precision Cold-Drawn Steel Tube/Pipe

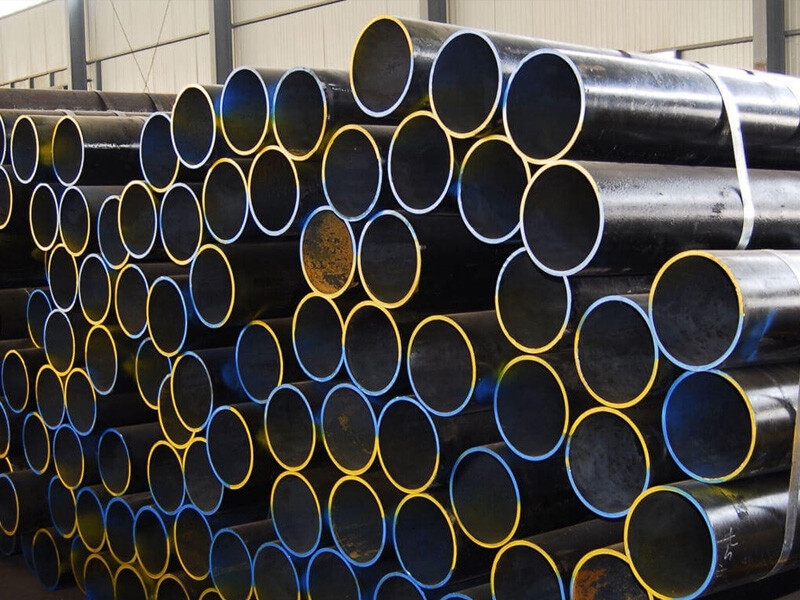

High-Precision Cold-Drawn Steel Tube/Pipe

Contact Info

8618762660839

+86-18762660839

Swendy@honor-industries.com

Address : 118 Beihuan Road, Xishan District, Wuxi, China

WhatsApp US

Get Best Quote



Parameter

Chemical Composition

Mechanical Properties

Product Name	High-Precision Cold-Drawn Steel Tube/Pipe
Material	20#,45#,Q355B,Q355D,Q355E,25Mn,27SiMn,E355,E470,P460,P620,1026
Outside	6~630mm
wall Thickness	0.5mm~50mm
Unit Length	3m, 5.8m, 6m, 11.8m, 12m, 13.5m or as per customers' request
Surface	Bare surface, varnish painting,galvanizing,other painting as per customers' request
Price Terms	FOB, CRF, CIF, EXW all acceptable
Delivery Detail	Inventory about 5-7; custom-made 10-30

Grade	C	Si	Mn	P	S	Cr	Ni	Cu	Mo	Nb	V	Ti	Alt	N
20#	0.17 - 0.24	0.17 - 0.37	0.35 - 0.65	≤0.035	≤0.035	≤0.25	≤0.25	≤0.25	-	-	-	-	-	-
45#	0.42 - 0.50	0.17 - 0.37	0.50 - 0.80	≤0.035	≤0.035	≤0.25	≤0.25	≤0.25	-	-	-	-	-	-
Q355B	≤0.20	≤0.55	≤1.60	≤0.035	≤0.035	≤0.30	≤0.30	≤0.30	≤0.10	≤0.07	≤0.15	≤0.20	≥0.015	≤0.012
Q355D	≤0.18	≤0.55	≤1.60	≤0.025	≤0.025	≤0.30	≤0.30	≤0.30	≤0.10	≤0.07	≤0.15	≤0.20	≥0.015	≤0.012
Q355E	≤0.18	≤0.55	≤1.60	≤0.020	≤0.020	≤0.30	≤0.30	≤0.30	≤0.10	≤0.07	≤0.15	≤0.20	≥0.015	≤0.012
25Mn	0.22 - 0.29	0.17 - 0.37	0.70 - 1.00	≤0.035	≤0.035	≤0.25	≤0.25	≤0.25	-	-	-	-	-	-
27SiMn	0.24 - 0.32	1.10 - 1.40	1.10 - 1.40	≤0.035	≤0.035	≤0.30	≤0.30	≤0.30	-	-	-	-	-	-
E355	≤0.20	≤0.55	≤1.70	≤0.035	≤0.035	≤0.30	≤0.30	≤0.55	≤0.10	≤0.05	≤0.12	≤0.05	≥0.02	≤0.012
E470	≤0.20	≤0.60	≤1.80	≤0.030	≤0.025	≤0.80	≤0.80	≤0.55	≤0.30	≤0.11	≤0.20	≤0.20	≥0.015	≤0.015
P460	≤0.20	≤0.60	≤1.80	≤0.030	≤0.025	≤0.80	≤0.80	≤0.55	≤0.30	≤0.11	≤0.20	≤0.20	≥0.015	≤0.015
P620	≤0.18	≤0.60	≤2.00	≤0.025	≤0.020	≤0.80	≤0.80	≤0.55	≤0.40	≤0.11	≤0.20	≤0.20	≥0.015	≤0.015
1026	0.22 - 0.28	0.15 - 0.30	0.60 - 0.90	≤0.035	≤0.040	≤0.25	≤0.25	≤0.25

Grade	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)	Impact Energy (J)	Hardness (HB)
20#	≥245	410 - 550	≥25	-	≤156
45#	≥355	600 - 800	≥16	-	≤229
Q355B	≥355 (t ≤ 16mm) ≥345 (16mm < t ≤ 40mm) ≥335 (40mm < t ≤ 63mm) ≥325 (63mm < t ≤ 80mm) ≥315 (80mm < t ≤ 100mm) ≥305 (100mm < t ≤ 150mm) ≥285 (150mm < t ≤ 200mm)	470 - 630	≥20	≥34 (at 20°C)	-
Q355D	≥355 (t ≤ 16mm) ≥345 (16mm < t ≤ 40mm) ≥335 (40mm < t ≤ 63mm) ≥325 (63mm < t ≤ 80mm) ≥315 (80mm < t ≤ 100mm) ≥305 (100mm < t ≤ 150mm) ≥285 (150mm < t ≤ 200mm)	470 - 630	≥20	≥34 (at - 20°C)	-
Q355E	≥355 (t ≤ 16mm) ≥345 (16mm < t ≤ 40mm) ≥335 (40mm < t ≤ 63mm) ≥325 (63mm < t ≤ 80mm) ≥315 (80mm < t ≤ 100mm) ≥305 (100mm < t ≤ 150mm) ≥285 (150mm < t ≤ 200mm)	470 - 630	≥20	≥34 (at - 40°C)	-
25Mn	≥275	450 - 600	≥20	-	≤170
27SiMn	≥390	590 - 785	≥12	-	≤217
E355	≥355 (t ≤ 16mm) ≥345 (16mm < t ≤ 40mm) ≥335 (40mm < t ≤ 63mm) ≥325 (63mm < t ≤ 80mm) ≥315 (80mm < t ≤ 100mm) ≥305 (100mm < t ≤ 150mm) ≥285 (150mm < t ≤ 200mm)	470 - 630	≥20	≥27 (at 0°C)	-
E470	≥470 (t ≤ 16mm) ≥450 (16mm < t ≤ 40mm) ≥430 (40mm < t ≤ 63mm) ≥410 (63mm < t ≤ 80mm) ≥390 (80mm < t ≤ 100mm) ≥370 (100mm < t ≤ 150mm) ≥350 (150mm < t ≤ 200mm)	550 - 720	≥17	≥34 (at - 20°C)	-
P460	≥460 (t ≤ 16mm) ≥440 (16mm < t ≤ 40mm) ≥420 (40mm < t ≤ 63mm) ≥400 (63mm < t ≤ 80mm) ≥400 (80mm < t ≤ 100mm) ≥380 (100mm < t ≤ 150mm) ≥360 (150mm < t ≤ 200mm)	550 - 720	≥17	≥34 (at - 20°C)	-
P620	≥620 (t ≤ 16mm) ≥600 (16mm < t ≤ 40mm) ≥580 (40mm < t ≤ 63mm) ≥560 (63mm < t ≤ 80mm) ≥540 (80mm < t ≤ 100mm)	710 - 940	≥15	≥34 (at - 20°C)	-
1026	≥370	585 - 760	≥22	-	-

PRODUCT SHOOTING

OUALITY INSPECTION

WORKSHOP PACKAGING

Packaging and loading:

Packaging: According to customers' needs, use wrapping paper. If the transportation period exceeds 10 days or encounters special climate, we will use waterproof packaging and add plastic film to prevent moisture, water and rust.

Loading: We use the wooden pallet,triangular wood to fix the coil,and the steel wire rope to hold on the both side. That can prevent from the crush injury effectively.
