C10200/TU1 Copper Coil-HONOR INDUSTRIES CO., LTD

Copper Coil/Strip



Location: Home > Products > Copper > Copper Coil/Strip > C10200/TU1 Copper Coil

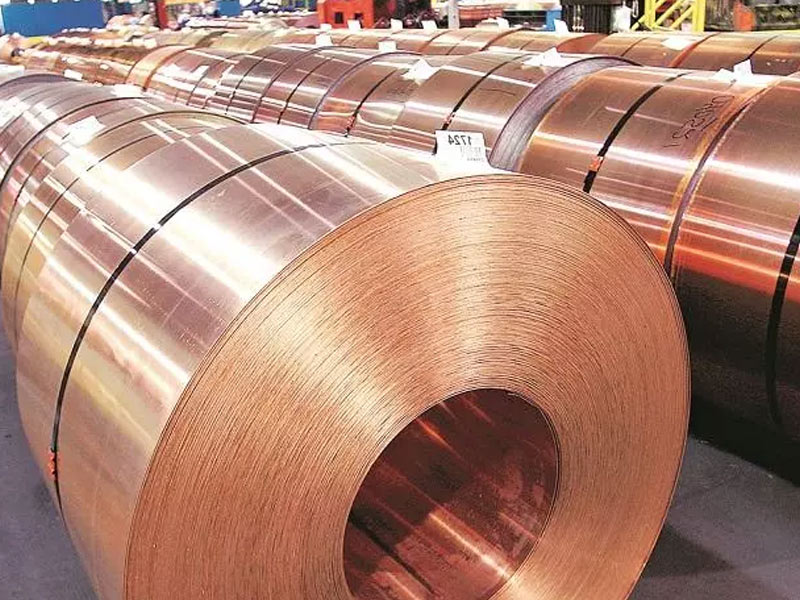

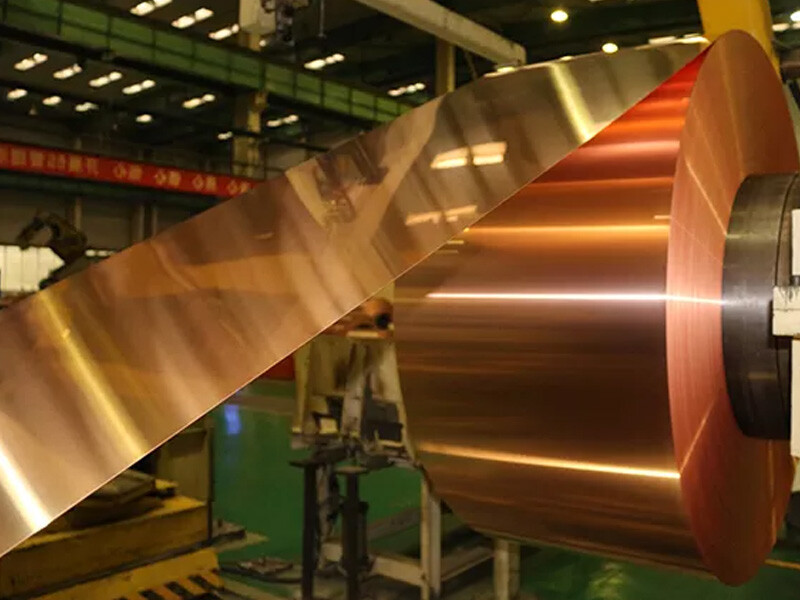

C10200/TU1 Copper Coil

Contact Info

8618762660839

+86-18762660839

Swendy@honor-industries.com

Address : 118 Beihuan Road, Xishan District, Wuxi, China

WhatsApp US

Get Best Quote



Parameter

Chemical Composition

Mechanical Properties

Product Name	Copper /Brass Coil/Strip
Material	Copper/Brass
Standard	ASTM, AISI, JIS, DIN, GB, EN
Grade	C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930,C11000,C11300,C11400,C11500,C11600, C12000,C12200,C12300,C12500, C14200,C14420,C14500,C14510,C14520,C14530,C17200, C19200,C21000,C23000,C26000,C27000,C27400,C28000, C33000,C33200,C37000,C44300,C44400,C44500,C60800,C63020,C65500,C68700, C70400, C70620,C71000,C71500,C71520,C71640,C72200T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1, H59,62,H65,H68,H70,H80,H85,H90,H96, C2100,C2200,C2300,C2400,C2600,C2680,C2720, C2800,C3560,C3601,C3713,C3771,C3561,C3710
Shape	Flat plate
Temper	O-H112; T3-T8; T351-T851
Size	thickness 0.1mm~3mm; Width 30-1000mm
Surface	Mill finish, polished, anodizing, brushing, sand blasting, powder coating,etc
Payment terms	T/T,L/C,western union,
Price terms	CFR,FOB,CIF,Ex-work,CNF
Application	1)Further making utensil. 2)Solar reflective film 3)The appearance of the building 4)Interior decorating:ceilings,walls,etc. 5)Furniture cabinets 6)Elevator decoraction 7)Signs,nameplate,bags making. 8)Decorated inside and outside the car 9)Household appliances:refrigerators,microwave ovens,audio equipment,etc. 10)The consumer electronics:mobile phones,digital cameras,MP3,U disk,etc.
Package	Standard export seaworthy package or as required.
Contact	If you have any question,please feel free to contact me.

Grade			Chemical Composition(%)
	GB	JIS	Cu+Ag	P	Bi	Sb	As	Fe	Ni	Pb	Sn	S	Zn	O
Refined Copper	T1	C1020	99.95	0.001	0.001	0.002	0.002	0.005	0.002	0.003	0.002	0.005	0.005	0.02
	T2	C1100	99.9	-	0.001	0.002	0.002	0.005	-	0.005	-	0.005	-	-
	T3	C1221	99.7	-	0.002	-	-	-	-	0.01	-	—	-	-
Oxygen Free Copper	TU0	C1011	99.99	0.0003	0.0001	0.0004	0.0005	0.001	0.001	0.0005	0.0002	0.0015	0.0001	0.0005
	TU1	C1020	99.97	0.002	0.001	0.002	0.002	0.004	0.002	0.003	0.002	0.004	0.003	0.002
	TU2	C1020	99.95	0.002	0.001	0.002	0.002	0.004	0.002	0.004	0.002	0.004	0.003	0.003

Grade (JIS)	Temper	Vickers Hardness (HV)	Tensile Strength (Mpa)	Elongation (%)
C1100C1201C1220etc.	M (Soft)	≤70	≥195	≥30
	Y4 (1/4H)	60-95	215-295	≥25
	Y2 (1/2H)	80-110	245-345	≥8
	Y (Full Hard)	90-120	295-395	≥3
	T (Extra Hard)	≥110	≥350	-

PRODUCT SHOOTING

OUALITY INSPECTION

WORKSHOP PACKAGING

Packaging and loading:

Packaging: According to customers' needs, use wrapping paper. If the transportation period exceeds 10 days or encounters special climate, we will use waterproof packaging and add plastic film to prevent moisture, water and rust.

Loading: We use the wooden pallet,triangular wood to fix the coil,and the steel wire rope to hold on the both side. That can prevent from the crush injury effectively.
